Product Patent NO.:
ZL200720080441-2 SIM-JZ-Ⅲ-180 Type Specification
ZL200710092978-5
RMKS: Honorific Consumer, In Order To Ensure A Proper Usage Of This Kind Of Machine, Please Study This Specification Before You Use.
Manufacturer: Chongqing Jiazhuang Environmental Protection Technology Co., Ltd.
Catalogue
Preface
Ⅰ. Usage
Ⅱ. Announcements
Ⅲ. Sander Maintenance
Ⅳ. About The Abrasive Discs
Ⅴ. Examination and Avoiding of Common Fault
Ⅵ. Warranty Card
Kindly Remainder: If The Sander Is Under The Warranty Period, Any Customer of Buying Our Sander Should Fill In The Maintenance Card Earnestly and Send the Returning Part To Us Together With The Broken-Down Machine, Or Else, The Repair Is Not Granted, And The Related Responsibility Should Afforded By Customers Themselves.
Preface

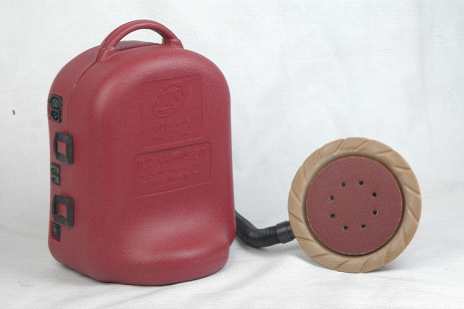

Nishi Multifunctional Dust Absorption Wall Space Sander, a series of sanders that invented and produced by Chongqing Jiazhuang Environmental Protection Technology Co., Ltd. which has gained the national three patents like utility model, design patent and inventive patent. This product is suitable for the rubbing and polishing of pieces like metal, wood, plywood, stone, wall, etc.. Nishi series sanders won’t be limited by the space, what’s more, they can reach a relative-high dust absorption rate to 98%, which provide a 4 to 6 times’ improvement of users’ work efficiency. Moreover, they can ensure an clean and environmental working condition to user, tremendously protected user’s health. Nishi series with a comfortable hand hold, stable operation, humanity design, top quality with reasonable price, is a reliable high-tech environmental product that you could trust.
Ⅰ. Usage
- Open the tool box, and take out the Sander, Suction Machine, Dust Sucking Tube, Dust Sucking Conduit, Dust Collecting Sleeve, and Power Wire. Put them all together. (Please See Assembling Draw)
- Insert the power wire plug in the INPUT. (Please See “2” In Assembling Draw)
- Insert the power wire plug of the sander in the OUTPUT. (Please See “3” In Assembling Draw)
- Insert dust sucking tube into the air inlet of the suction machine, and dust collecting sleeve to dust sucking conduit. (Please See “11,17” In Assembling Draw)
- Insert dust sucking conduit into the air inlet of the suction machine, and dust sucking conduit to the output of seal cover. (Please See “5,6,16” In Assembling Draw)
- Stick abrasive paper onto the working area. (Please See “8,9” In Assembling Draw)
- Press the locating card on the top of the dust collecting sleeve onto the edge of the bottom of tool case, and then lock the lockset. (Please See “2” In Assembling Draw)
- Connect the power wire plug to mains.
- Debug the sander and suction machine to a proper revolving speed.
- Put the retaining ring of the braces into the tool case rocker.
- Put on the tool box, hand the sander, turn on the mains switch. Then the machine is active.
- After finishing the work, put all the parts of the instrument into the box.
Ⅱ. Announcements
- It is forbidden to use the machine on wet working wall.
- It is forbidden to operate in various inflammable and explosive locations.
- It is forbidden to beat sander and tread on the tool box.
- It is forbidden to directly drag the power wire out from the sander, so as to avoid poor contact.
- Cut off the power supply before assembling and dismantling machine.
- The joint area which defined to be connected by screw should be tightly combined by screws.
- Dump the dust in the dust collecting sleeves constantly, to ensure suction machine a good dust absorption condition. (Dust Level should be controlled less than 60% )
- Keep the working plate (without sticking on the abrasive paper) and the seal cover on the same level to ensure a perfect rubbing effect.
- The machine should be placed in a dry condition where is out of children’s touchable.
- Make sure the machine is under the circumstance of outage before usage.
- It is forbidden to turn on the machine when it is laid on the ground.
- After been hold on the back should the machine be turned on.
- Study the product specification before usage.
Ⅲ. Sander Maintenance
-
Maintain the change gear regularly (2-3 months) by lube.
-
Dump the dust in the dust collecting sleeves constantly, to ensure suction machine a good dust absorption condition. (Dust Level should be controlled less than 60% )
-
Check whether the carbon brush of the sander should be replaced or not, if so, change a new one.
-
Have a frequent examination on whether or not the working plate have been out of shape, degummed or rubbed the seal cover? If so, do some roper maintenance.
Ⅳ. About The Abrasive Discs
ⅰ. Parameter List of The Abrasive Disc Chosen
Objects |
Technological Requirements |
Abrasive Disc Granularity |
Internal Wall |
Rubbing before priming |
AA120-AA320 |
Rubbing after priming |
AA240-AA400 |
External Wall |
Rubbing before priming |
AA40-AA80 |
Rubbing after priming |
AA60-AA120 |
Wood Work Piece |
Ironwood rubbing |
AA120-AA240 |
Corkwood rubbing |
AA240-AA320 |
Plywood |
Rubbing |
AA120-AA240 |
Metal Work Piece
|
Repairing and Scraping of Painted Wall |
AA40-AA80 |
Scratch Repairing |
AA120-AA240 |
Rubbing, Sanding |
AA120-AA400 |
ⅱ. SIM-JZ- III -180 Type Parameters
Type: SIM-JZ-III-180
Voltage: 110V-220V
Frequency: 50HZ
Working Diameter: 180mm
Dust Absorption Rate: 98%
Main Shaft: M8
Title |
Power |
Weight |
Revolving Speed |
Sander |
380W |
1.7kg |
3100 turn/min |
Suction Machine |
120W |
2.8kg |
7000 turn/min |
Total |
--- |
4.5kg |
--- |
PS: Total Weight In The Tabulation Above Is Only The Weight Of Sander And Suction Machine, Not The Weight Of The Whole Instrument. The Overall Weight Of The Instrument is 6.5KG.
ⅲ. Packing List
SN |
Product Name |
Unit |
Quantity |
1 |
Sander |
set |
1 |
2 |
Dust Sucking Conduit |
--- |
1 |
3 |
Braces |
--- |
1 |
4 |
External connection wire |
--- |
1 |
5 |
Dust Collecting Sleeve, |
--- |
1 |
6 |
Pipe |
--- |
1 |
7 |
Abrasive Disc |
--- |
4 |
8 |
Trigeminal Tool |
Piece |
1 |
9 |
Specification |
Piece |
1 |
Ⅳ. Examination and Avoiding of Common Fault
SN |
Fault Phenomenon |
Examination Way |
1 |
Sander or Suction Machine doesn't rotate |
①Check that whether the power plug is charged with electricity, the power connecting line is loose.
②Check that whether the carbon brush is loose.
③Check that whether the transmission is neutral position. |
2 |
Dust absorption effect is not obvious, or some dust has been found on the outskirt of the seal cover. |
①Check that whether the speed controller of suction machine has been turned to a proper position.
②Check that whether the spacer was added too much. Keep the working plate and the seal cover on the same level.
③Clean the dust collecting sleeve when its storage is beyond 60%. |
3 |
When Fish scale like mark appeared on the working wall |
①Turn down the rotation speed of the sander.
②Lessen the spacer of the working plate, keep the working plate and the seal cover on the same level.
③Change a proper abrasive paper. |
4 |
The temperature rose too fast.
(About 45% is reasonable.) |
①Adjust the sander revolving speed to a proper rate.
②Lessen the spacer of the working plate, keep the working plate and the seal cover on the same level.
③Clean the dust collecting sleeve when its storage is beyond 60%. |
5 |
Machine Shakes When it’s under Operation. |
①Lift down the height of working plate, Keep the working plate (without sticking on the abrasive paper) and the seal cover on the same level.
②Check that whether the glue of sander plate was came off.
③Check that whether the seal cover was proper installed.
④Turn down aspirating capacity.
⑤The target work piece is so hard and coarse that the machine needs to change to an alloying abrasive disc with low rotation rate.
⑥Pat the working plate to let the dust come off. |
6 |
Loud Noisy |
①It’s normal for a new machine produces an 80 DB.
②Turn down the rotation speed of the sander.
③Maintain the gear with lube after a long time use. |
Ⅴ. Warranty Card
Ⅰ. Circumstances below are not including in the warranty range within the warranty period:
1. Damages that caused by natural abrasion and overloaded.
2. Factitious damages.
3. Damages that caused by customers’ disassembly and repair.
4. When the machine’s warranty period is expired, charges need to be afforded by custom.
Ⅱ. Keep the warranty card careful after bought the machine, so as to be a proof of purchasing and fixing.
Ⅲ. The distributors are in charge of the repair after customer shows the warranty card. If there is no distributor in your area, you can send the fault machine together with warranty card to our company. (Freight should be afforded by customers themselves.)
Warranty Card (Customer Keep) |
Distributor’s Name |
|
Repair Time |
|
Product Code |
|
Purchasing Date |
|
Warranty Card (Distributor Keep) |
Customer’s Addr. |
|
Customer’s Name |
|
Tel. |
|
Product Code |
|
|
|
Maintenance point. |
|
Date of Repair |
|
Returning Part
Warranty Card (Company Keep) |
Distributor’s Name |
|
Repair Time |
|
Product Code |
|
Purchasing Date |
|
Warranty Card (Company Keep) |
Customer’s Addr. |
|
Customer’s Name |
|
Tel. |
|
Product Code |
|
|
|
Maintenance point. |
|
Date of Repair |
|
|
